Machining a Flywheel Drive Plate for a 1200HP CAT Engine!

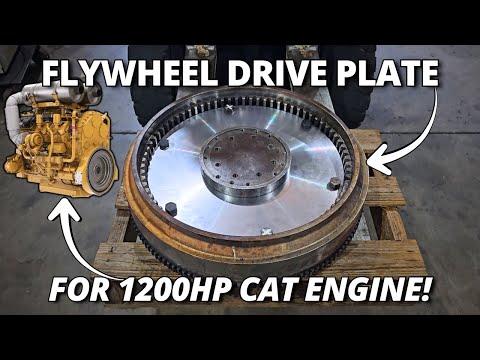

We’re up against the clock machining a custom drive plate for a 1200HP Caterpillar C32 V12 engine our customer needs back today! We’ve got a massive flywheel from a CAT C32 V12 out of a 777 haul truck, and our job is to make a precision drive plate so the engine can be tested on the dyno. We start by marking out a 16mm steel plate, cutting it to rough size with the gas axe, and setting it up in the lathe to face and ream a perfect centre fit for the coupling pin. From there, it’s over to the mill where we use the PCD function on the DRO to drill and tap all the bolt holes — eight for the drive coupling and six to mount into the flywheel. Once the coupling’s bolted to the plate, it goes back in the lathe for final machining on the outer diameter. Then comes the next challenge — drilling the matching holes in the flywheel itself. It’s so big we have to do it in two setups on the mill and move the ram to reach the final holes. Between cutting, machining, and drilling, there’s no room for error on this rush job, everything has to line up perfectly before it leaves the shop 🔥 Join our channel: We upload new videos every Friday at 5pm AEST! If you want to see more of our videos click LIKE & SUBSCRIBE! You can subscribe to our channel here: https://bit.ly/ceesubscribe Want Early Access & Ad Free videos?? Join our Patreon Community: https://www.patreon.com/cuttingedgeengineering Official CEE Merch shop: https://www.ceeshop.com.au Check out our CEE Amazon store and explore our favourite finds that we use in the workshop: https://www.amazon.com/shop/cuttingedgeengineeringaustralia To see more follow us on online here: TikTok: https://vt.tiktok.com/ZSdHhtN4h/ Instagram https://instagram.com/cutting_edge_engineering Facebook https://www.facebook.com/cuttingedgeengineeringaustralia/ About Us: We're a down-to-earth real life machining and fabrication workshop in Australia. We specialise in helping business in mining and earthmoving to keep their machines running smoothly. We love working on broken parts and the bigger the better! We upload new videos every week showcasing machining, welding, line boring, honing and all the other awesome stuff that goes down in our workshop. Learn how we tackle different projects and see the satisfaction of creating something useful. Subscribe to stay updated on our latest jobs and projects! Follow us on Patreon for even more content and behind-the-scenes glimpses or find us on Tiktok, Facebook and Instagram for a chance to connect with us. #australianmachinist #machineshop #machinist
